DFM and mold design
Translate the released product geometry into a practical mold and trial plan.
In-house capability
Mold design &
manufacturing.
Vango designs and manufactures molds in-house, then uses trial results to correct the tooling and release a production standard.
Made by Vango
All capabilities
Who makes it
Made by Vango
Mold design, machining, fitting, trials, and corrections are handled on Vango's own floor.
Available as a standalone mold order
- Scope
- Design through validated tooling
- Build
- Machining, fitting, and correction
- Validation
- Trials and approved samples
- Handover
- Agreed per project
Service scope
What this route covers
Mold manufacturing

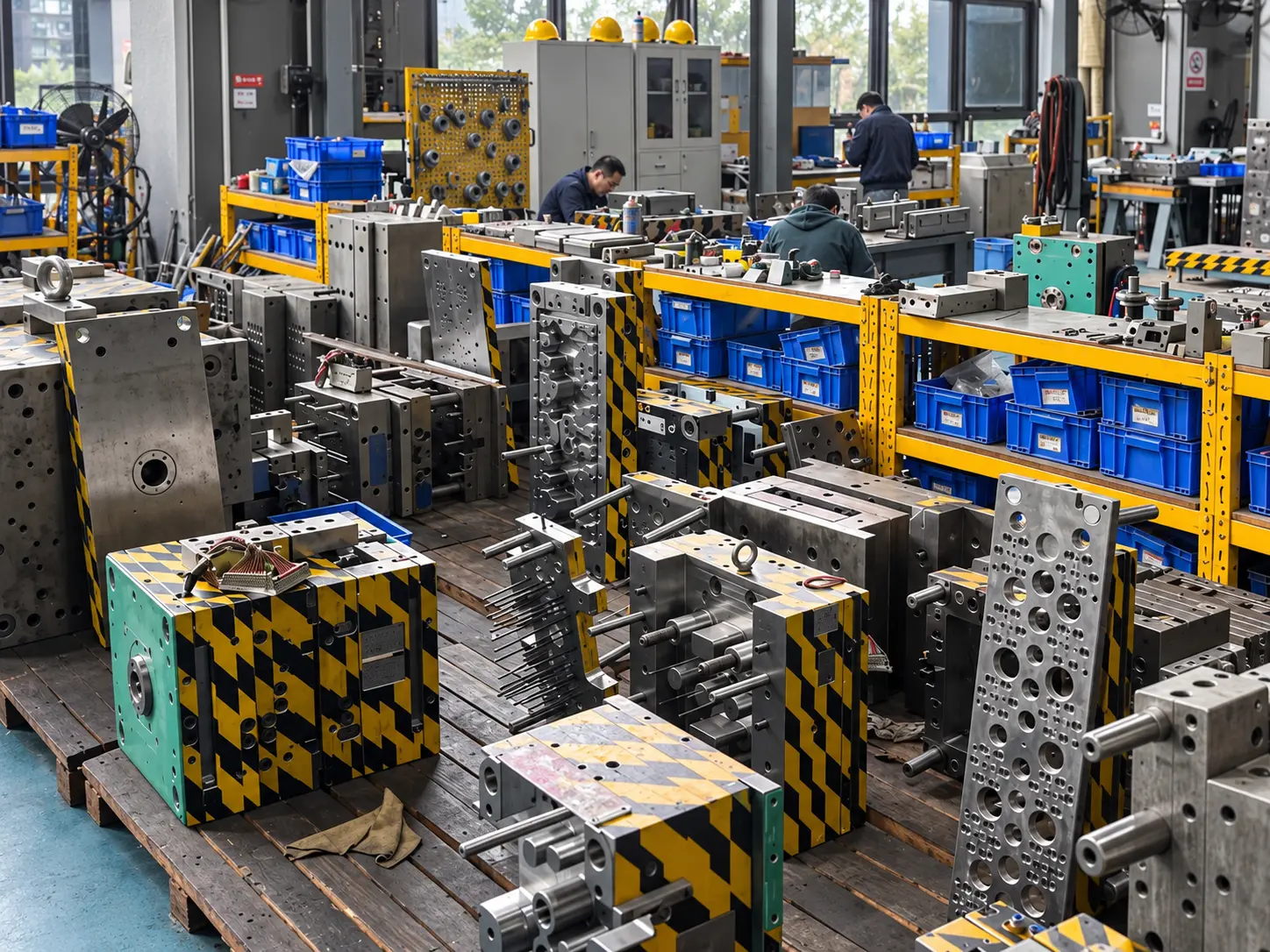

Machine, fit, and assemble the mold on Vango's own tooling floor.
Trials and corrections
Use trial parts to identify tooling or process changes before release.
Production support or handover
Use the validated mold in a managed production route or arrange handover as agreed.
Released standard
What Vango controls
- 01
Released product drawing and revision
- 02
Mold structure, interfaces, and process assumptions
- 03
Trial plan and correction record
- 04
Approved sample and production release
- 05
Ownership, storage, maintenance, and handover scope
Production route
From requirement to release
- 01
Define the part
Align geometry, material, appearance, quantity, and acceptance criteria.
- 02
Design the mold
Release the tooling design against the selected production process.
- 03
Build and fit
Machine, assemble, and prepare the tooling for its first trial.
- 04
Trial and approve
Correct the tooling and release an approved sample and production package.
Related capabilities
Build the full route
Next step
Have a drawing, sample, or production target?
Send the current information. We will confirm the manufacturing route, who performs each process, and what must be defined before quotation.
